Heat Pump 10 Year Challenge

Everyone is taking part in the the current trend called The 10 Year Challenge, so we thought why not do that with heat pumps. Read on to see how heat pumps have changed over the last 10 years and why there is even more of a reason to install them in years to come.

The Technology

Firstly, let’s take a look at how the technology has changed. In truth, not too much has changed technology-wise. As we often reiterate to our customers, heat pumps are a well-proven, long-established technology that has been used for decades in the Nordic countries. There have been improvements to certain individual components, however the fundamental principle remains the same, that heat pumps generate around 3 - 4 units of heat for each unit of electricity consumed.

Ground Source Heat Pumps - IVT Greenline

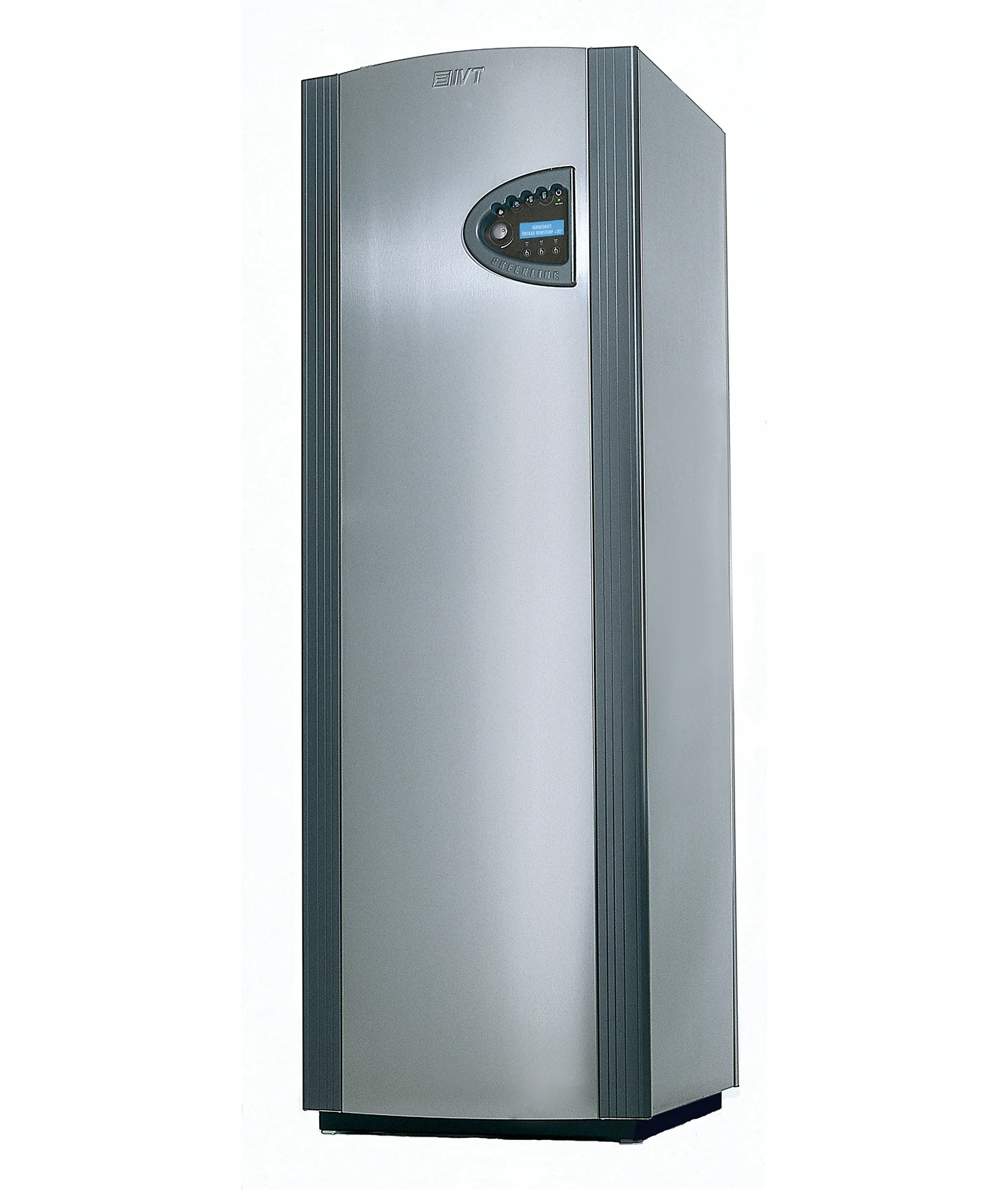

IVT Greenline HT+ Ground Source Heat Pump - 2009

IVT Greenline HT+ Ground Source Heat Pump - 2009

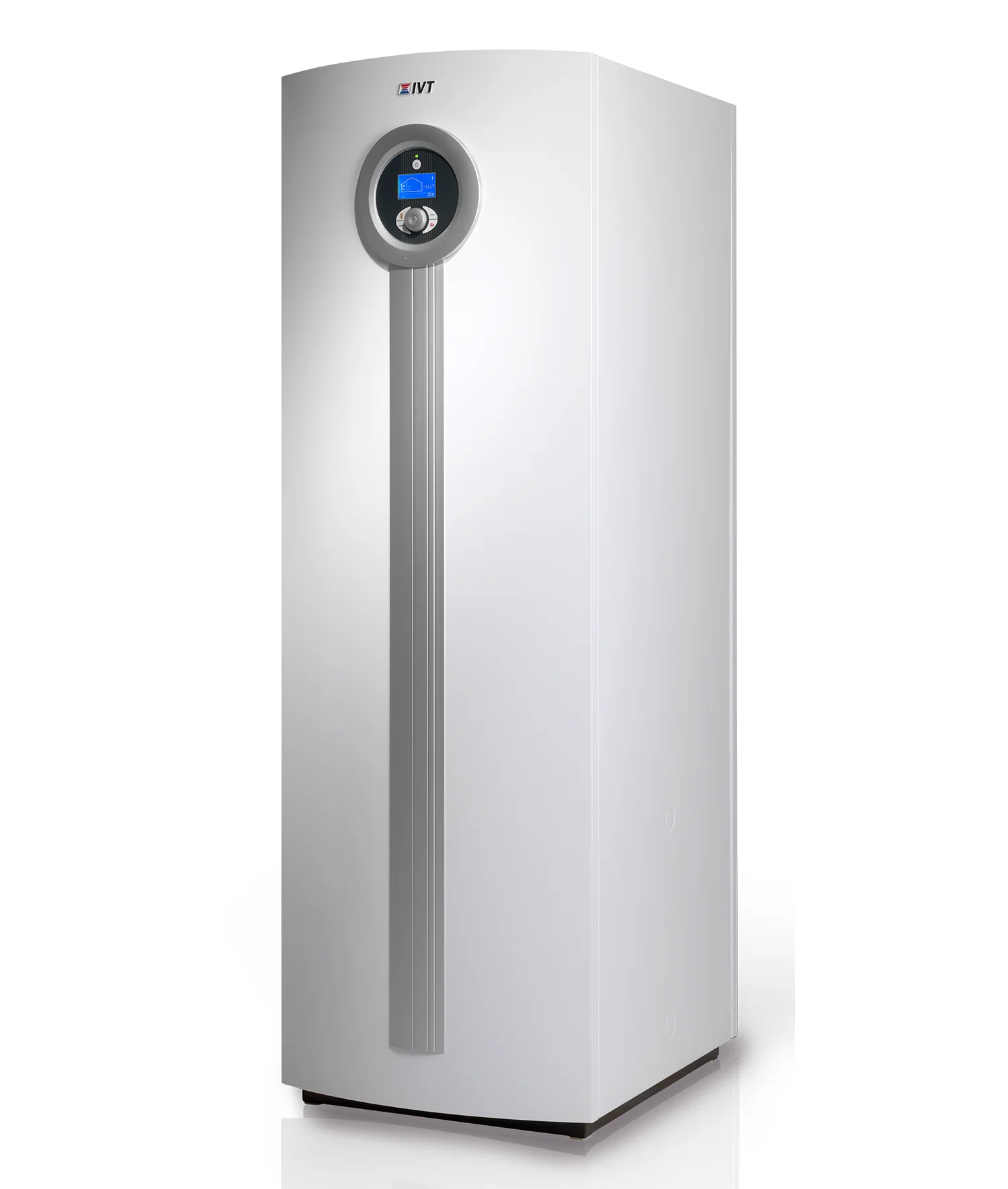

IVT Greenline HE Ground Source Heat Pump - 2019

IVT Greenline HE Ground Source Heat Pump - 2019

The key differences are:

  • Newer aesthetic design

  • More user-friendly controls

  • Capability for online monitoring

  • Low energy, high-efficiency circulation pumps enabling greater coefficient of performance

Air Source Heat Pumps - Mitsubishi Ecodan

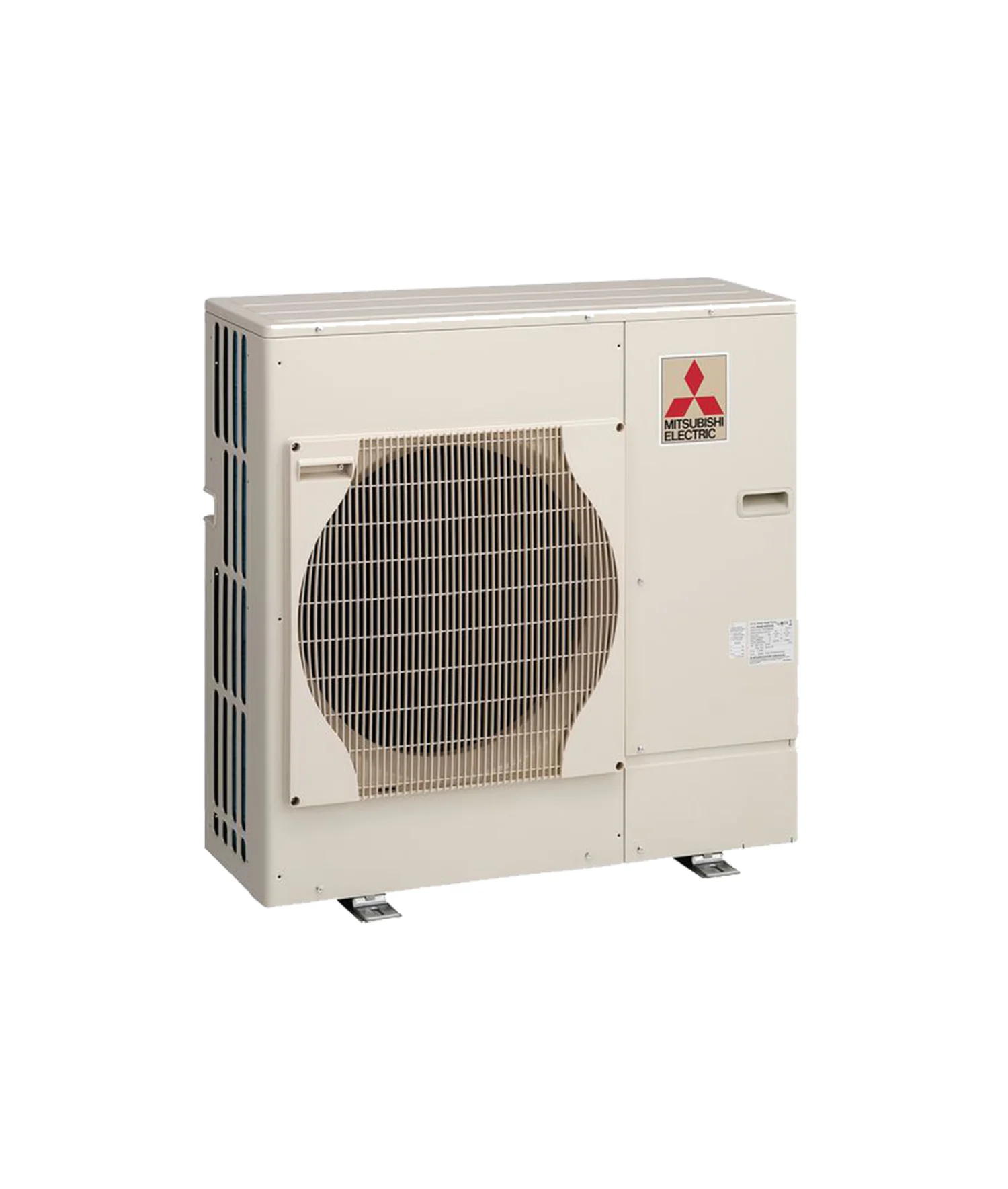

Mitsubishi Ecodan 8.5kW Air Source Heat Pump - 2009

Mitsubishi Ecodan 8.5kW Air Source Heat Pump - 2009

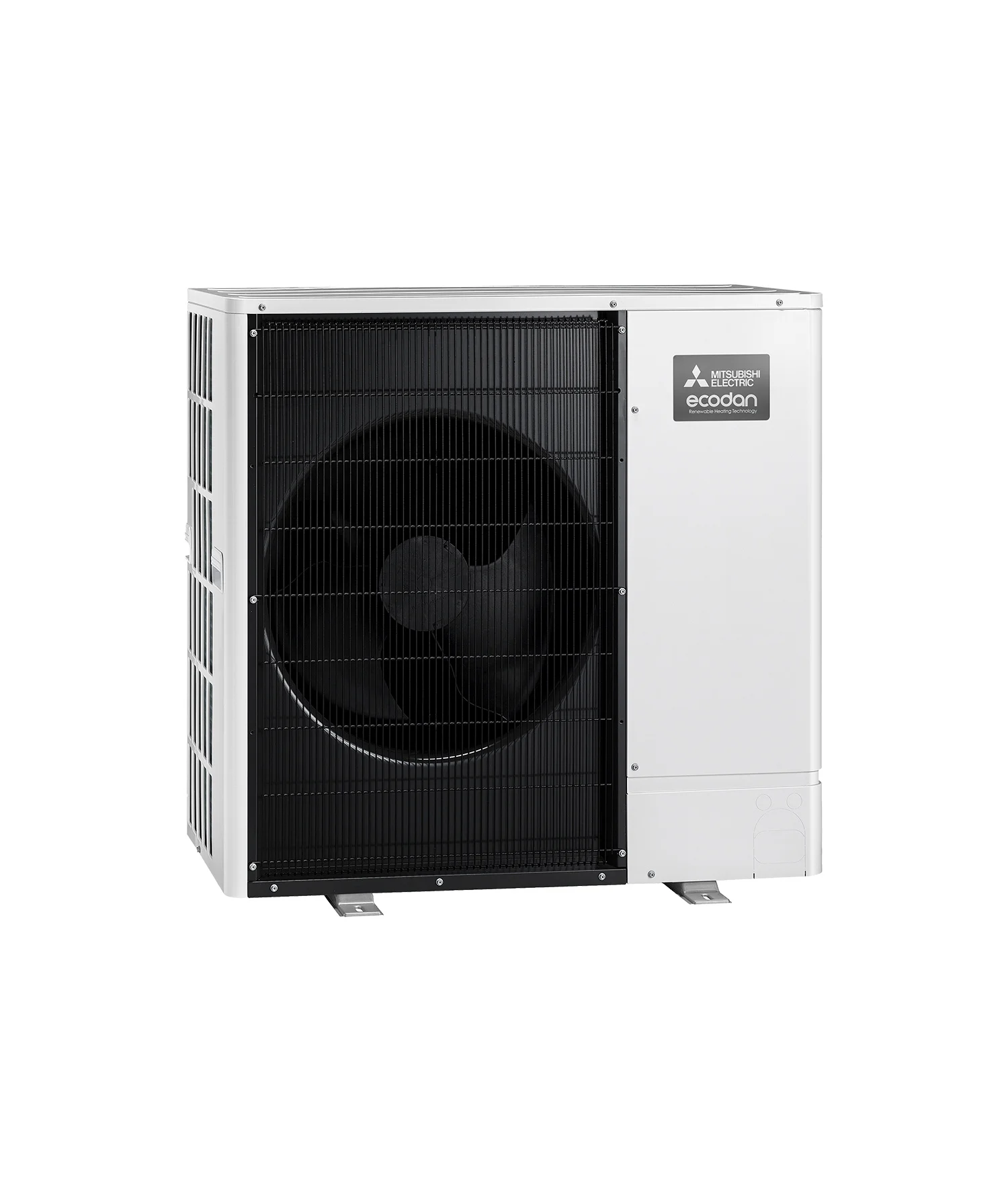

Mitsubishi Ecodan Ultra Quiet 8.5kW Air Source Heat Pump - 2019

Mitsubishi Ecodan Ultra Quiet 8.5kW Air Source Heat Pump - 2019

The key differences are:

  • Modern aesthetic design

  • Significant improvement in noise level. The noise levels for an 8.5kW Ecodan have decreased from 48dBA to 45dBA sound pressure level at 1m in 2019.

  • More user-friendly controls, with the FTC2 in 2009 now upgraded to the FTC5 controller

  • Capability for online monitoring

Heat Pump Government Incentives

Renewable Heat Incentive (RHI)

The biggest change for heat pumps over the last 10 years is most definitely the introduction of the Renewable Heat Incentive (RHI). The RHI was introduced to promote the adoption of both ground source heat pumps and air source heat pumps. Below is a table which shows how much the RHI Tariffs have increased over recent years.

Technology RHI Tariff Feb 2009 RHI Tariff Feb 2014 RHI Tariff Feb 2019
Ground Source Heat Pump 0.00 p/kWh 18.80 p/kWh 20.46 p/kWh
Air Source Heat Pump 0.00 p/kWh 7.30 p/kWh 10.49 p/kWh

Worked Example:

For your typical 4-bedroom house with an annual heating and hot water requirement of 20,000 kWh, the annual RHI payments are as follows:

Technology Annual RHI Payment 7-Year Total RHI
Ground Source Heat Pump £2,923 £20,461
Air Source Heat Pump £1,499 £10,493

Table showing RHI payments based on current tariffs


The RHI is scheduled to continue until at least March 2021 so act now to claim this generous incentive and get paid to heat your home.

Heating Oil Prices

Finally, we can’t really talk about heat pumps without mentioning oil prices! It is an understatement to say that oil prices fluctuate. 10 years ago, in February 2009 the average oil price was around 35p per litre. At the time of writing, the price of oil is approximately 48p per litre. The peak price in between that time was over 65p per litre!

UK Heating Oil Price Feb-2009 to Feb-2019

UK Heating Oil Price Feb-2009 to Feb-2019

Based on the price today, an 80% efficient boiler will cost 6.0p/kWh of delivered heat. For your typical 4-bedroom house with an annual heating and hot water requirement of 20,000 kWh, this will cost £1,200 per annum on heating.

A heat pump will completely replace your existing boiler, and operates using electricity, meaning no more annoying fuel deliveries! A heat pump works by moving heat from one place to another - rather than creating heat by burning fuel - and as such they are very efficient. Typically, a ground or air source heat pump will generate around 3.5 units of heat for each unit of electricity consumed. At the time of writing, the average British Gas unit price of electricity is 12.5p/kWh. This means for the same property described above, the total cost will be £714 per annum.

BASED ON THESE FIGURES, A HEAT PUMP IS 41% CHEAPER TO RUN THAN HEATING OIL


GET IN TOUCH

And don’t spend the next 10 years burning expensive fossil fuels to heat your home.
